镉污染土壤中水稻的镉富集特征和生长响应

doi:10.11686/cyxb2024348

摘要/Abstract

摘要：

近年来，土壤镉（Cd）污染问题日趋严重，给人类健康带来了极大的威胁。Cd污染土壤的修复和再利用成为亟待解决的环境问题。本研究以水稻为对象，设置不添加Cd（对照，CK），添加低Cd（0.5 mg·kg^-1）、中Cd（2.5 mg·kg^-1）和高Cd（10 mg·kg^-1）4种处理，解析Cd污染对水稻不同生长时期生理生化特性和Cd富集能力的影响。结果发现，中、高浓度Cd污染显著降低了水稻地上部生物量，成熟期水稻叶绿素含量随着Cd浓度升高显著下降了30.73%~77.64%，低浓度Cd污染使分蘖期水稻脯氨酸含量较对照显著增加45.11%，Cd污染使抽穗期水稻脯氨酸含量显著降低了33.75%~61.10%。各处理成熟期水稻的超氧化物歧化酶（SOD）、过氧化物酶（POD）（除低浓度Cd污染的POD）活性较对照显著增强。随Cd污染浓度的增加，水稻各部位Cd含量增加，成熟期水稻根、茎、叶、壳的Cd富集系数逐渐降低，水稻成熟期的土壤酸溶态Cd和可还原态Cd占比增加。水稻Cd含量、土壤不同Cd形态与脯氨酸含量、SOD、POD活性显著正相关，与叶绿素显著负相关。本研究可为Cd在水稻体内的富集和转运及Cd污染土壤的安全利用提供理论依据。

关键词: Cd污染土壤, 抗氧化酶, 渗透调节物质, 富集, 转运

Abstract:

In recent years， the problem of soil cadmium （Cd） pollution has become increasingly serious， posing great threat to human health. The remediation of Cd-contaminated soil has become an urgent environmental problem. In this study， rice （Oryza sativa） was used as the test plant， and four treatments were set up with no Cd （control， CK）， low Cd （0.5 mg·kg^-1）， medium Cd （2.5 mg·kg^-1） and high Cd （10 mg·kg^-1soil）. The effects of Cd pollution on physiological and biochemical characteristics and Cd levels of rice at different growth stages were investigated. It was found that the medium and high concentrations of Cd significantly decreased the aboveground biomass of rice， while the chlorophyll content of rice at maturity decreased by 30.73%-77.64% with exposure to increased Cd concentration. The low Cd concentration significantly （P<0.05） increased the proline content at tillering stage by 45.11% compared with the control， and Cd pollution significantly （P<0.05） reduced the proline content at heading stage by 33.75%-61.10%. For rice plants exposed to Cd at the mature stage， the activities of superoxide dismutase and peroxidase （except the peroxidase activity at low Cd concentration） were significantly （P<0.05） increased， compared with the CK treatment. With increase in Cd concentration， the Cd content in all parts of the rice plants increased. However， at maturity the Cd enrichment coefficient in roots， stems， leaves and rice husk decreased gradually. Meanwhile， the proportion of acid-soluble Cd and reducible Cd fractions in the soil increased. There was a significant positive correlation between soil concentration of the different Cd species plant Cd content， plant proline content， and plant superoxide dismutase activity and peroxidase activity. There was a significant negative correlation between Cd content and chlorophyll concentration. This study enhances understanding of the dynamics of Cd transfer from soil and accumulation in rice plants， and the safe utilization of Cd-contaminated soil.

Key words: cadmium-contaminated soil, antioxidant enzymes, osmotic adjustment substances, enrichment, transport

卢天一, 艾艳梅, 汪洋, 那萌, 徐尚起, 周际海. 镉污染土壤中水稻的镉富集特征和生长响应[J]. 草业学报, 2025, 34(8): 66-78.

Tian-yi LU, Yan-mei AI, Yang WANG, Meng NA, Shang-qi XU, Ji-hai ZHOU. Cadmium enrichment characteristics and growth response of rice under excess cadmium stress in soil[J]. Acta Prataculturae Sinica, 2025, 34(8): 66-78.

图/表 10

表1 供试土壤基本理化性质

Table 1 Basic physical and chemical properties of test soil

有机质

Organic matter （g·kg^-1）

全氮

Total nitrogen （g·kg^-1）

全磷

Total phosphorus （g·kg^-1）

全钾

Total potassium （g·kg^-1）

镉

Cd （mg·kg^-1）

图1 镉对水稻株高和生物量的影响生物量为成熟期水稻生物量；不同小写字母表示相同生长时期不同处理间差异显著（P<0.05），不同大写字母表示不同生长时期相同处理间差异显著（P<0.05）。下同。Biomass is the biomass of rice at mature stage. Different lowercase letters indicate significant differences among different treatments at the same growth stage （P<0.05）， and different uppercase letters indicate significant differences among different growth stages at the same treatment （P<0.05）. The same below.

Fig.1 Effects of Cd on plant height and biomass of rice

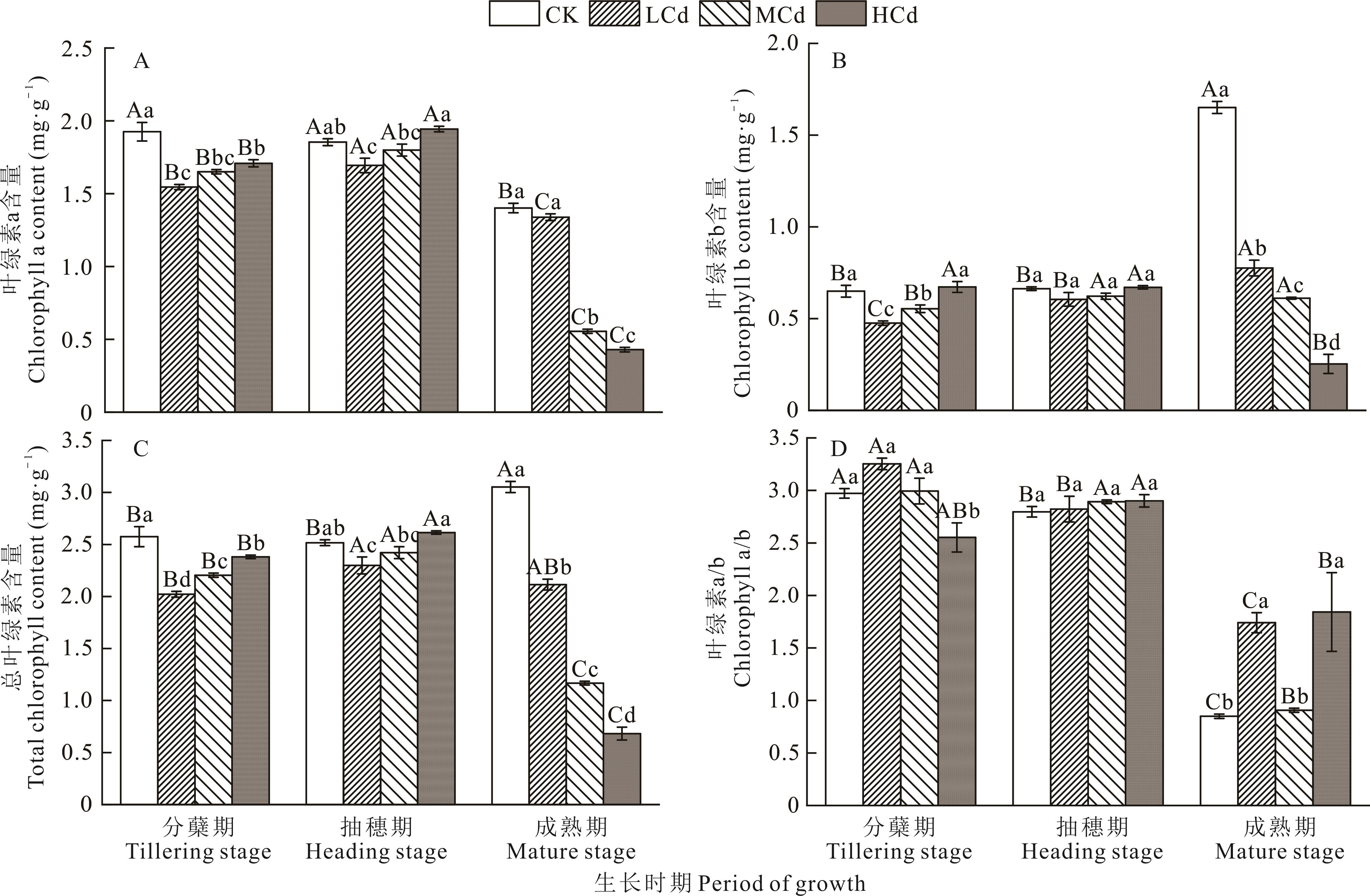

图2 镉对水稻叶绿素含量的影响

Fig.2 Effects of Cd on chlorophyll content in rice

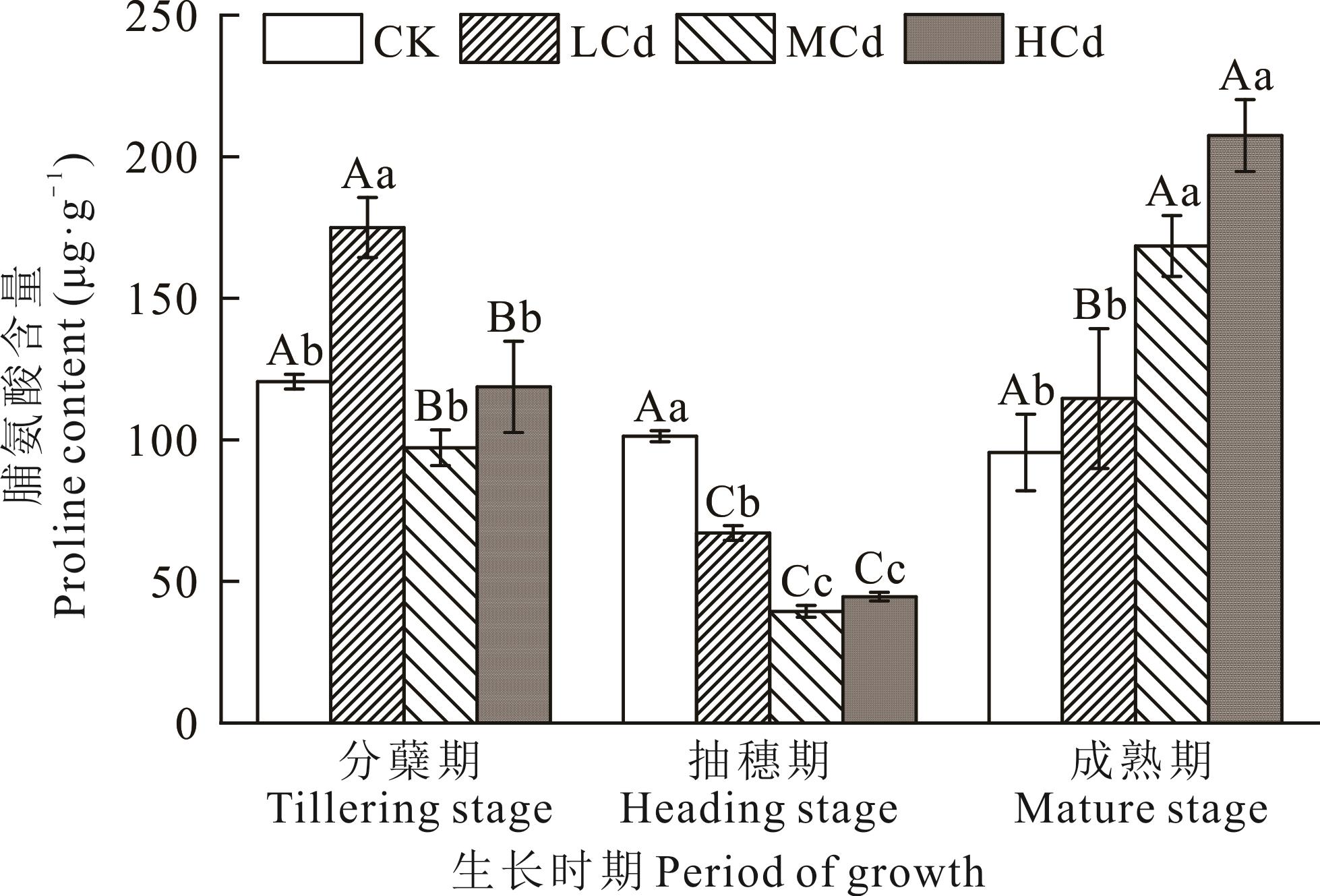

图3 镉对水稻脯氨酸含量的影响

Fig.3 Effects of Cd on proline content in rice

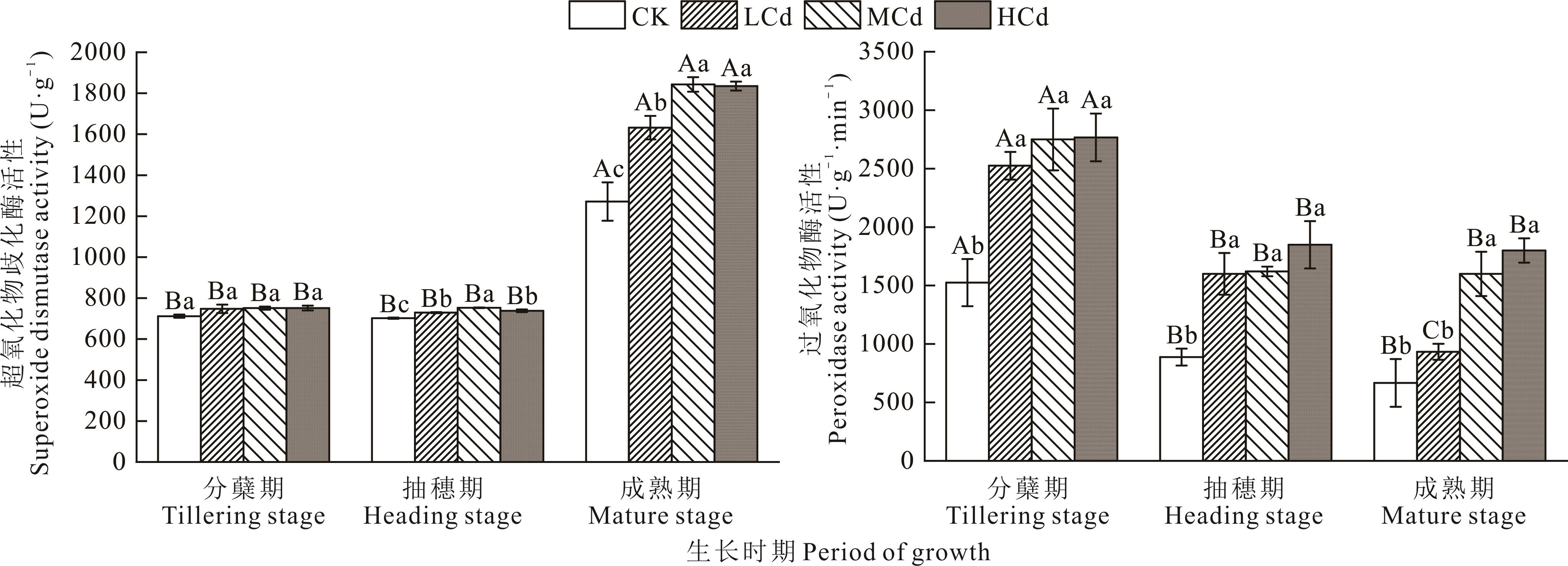

图4 镉对水稻抗氧化酶活性的影响

Fig.4 Effect of Cd on antioxidant enzyme activity in rice

图5 水稻各部位镉含量DW：干重Dry weight；不同小写字母表示水稻同一部位不同处理间差异显著Different lowercase letters indicate significant differences among different treatments in the same part of rice.

Fig.5 Cd content in different parts of rice

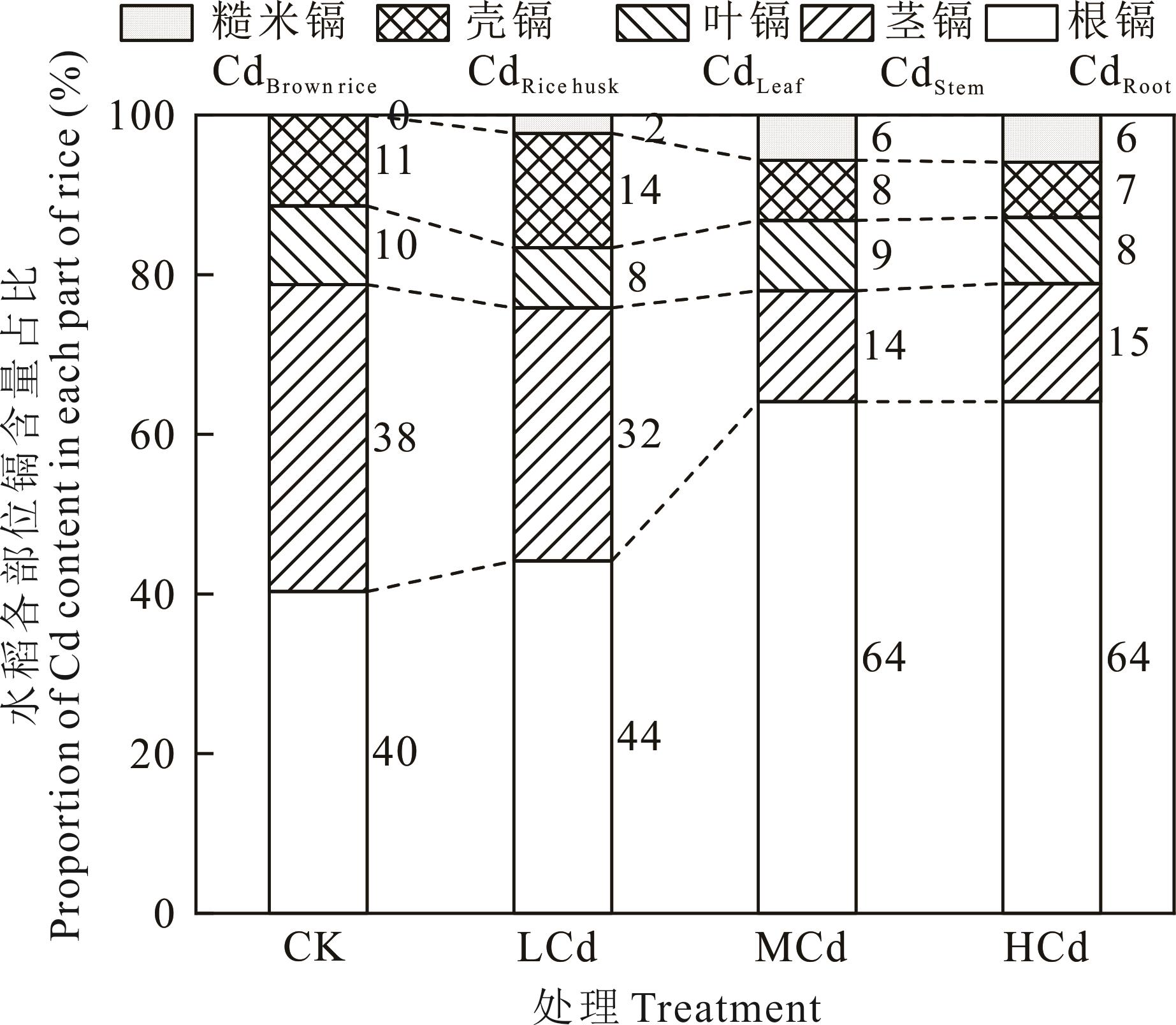

图6 水稻各部位镉含量的占比

Fig.6 Proportion of Cd content in different parts of rice

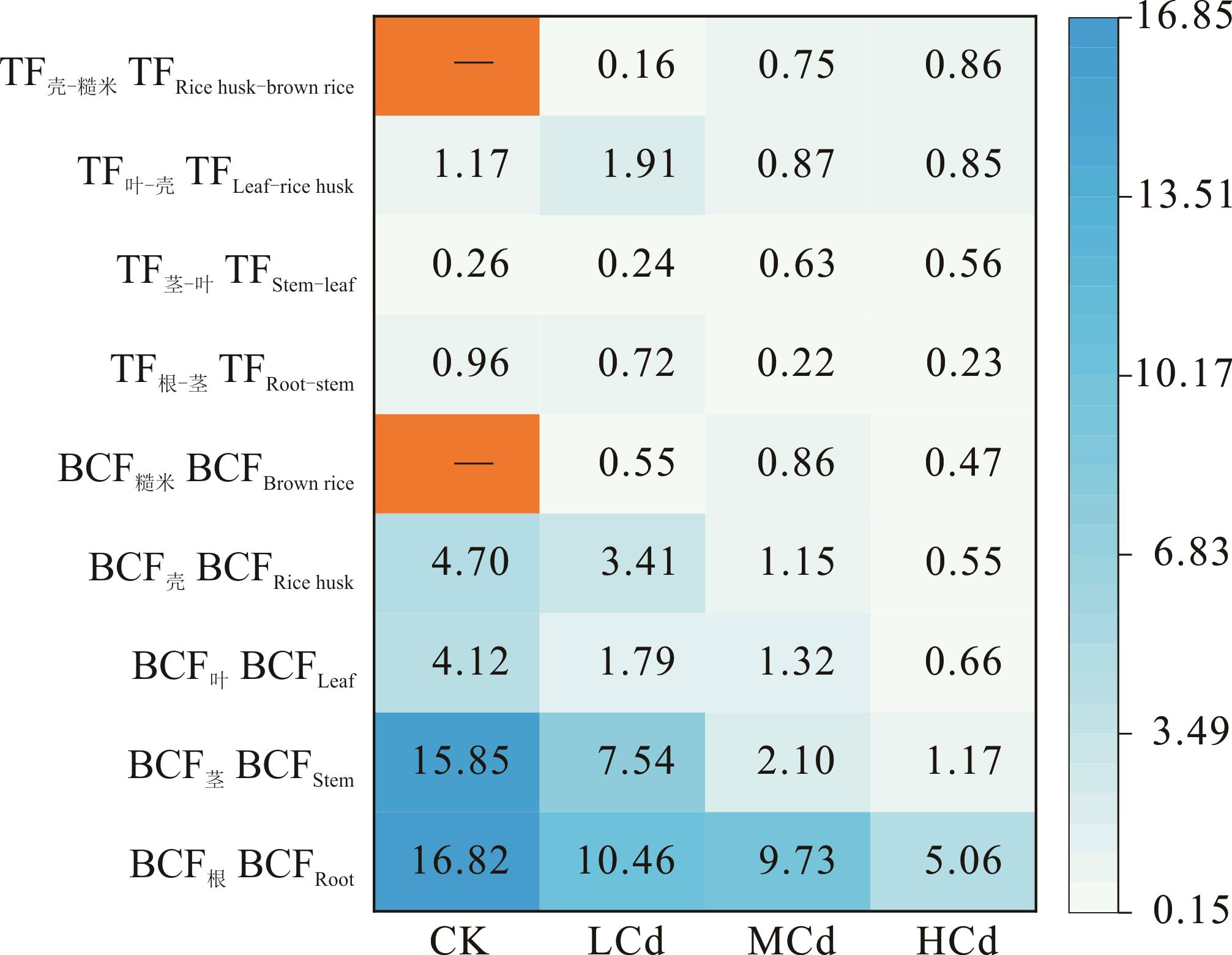

图7 水稻对镉的富集和转运系数图中以橙色为底的“-”表示该数据代表的水稻部位未检出Cd，记为0，相应的计算时作为被除数不成立，故记为缺失值。The “-” at the bottom of orange in the figure indicates that Cd is not detected in the rice part represented by the data， which is recorded as 0. The corresponding calculation is not valid as the dividend number， so it is recorded as missing value.

Fig.7 The bioconcentration factor and translocation factor of Cd in rice

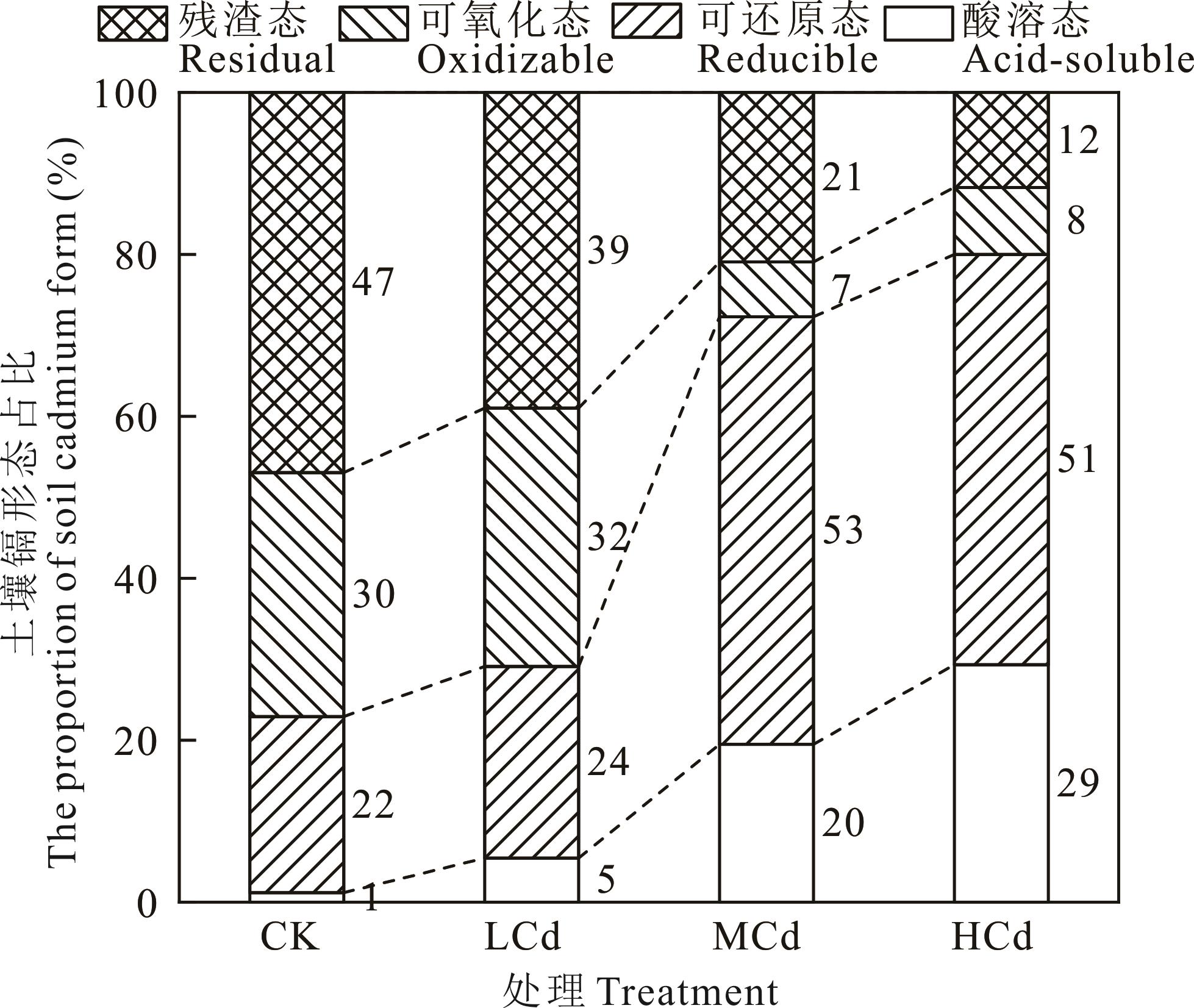

图8 土壤Cd形态占比

Fig.8 The proportion of soil Cd species

图9 镉含量和形态与水稻生长生理特性之间的相关性*： P<0.05； **： P<0.01.

Fig.9 Correlation between Cd content speices and physiological characteristics of rice

参考文献 50

1	Meng Q H， Fan W H， Liu F W， et al. Effect of phosphorus application on eggplant cadmium accumulation and soil cadmium morphology. Sustainability， 2023， 15（23）： 16236.
2	Ashraf S， Ahmad S R， Ali Q， et al. Efficacy of plant growth-promoting rhizobacteria and novel acidified organic amendment to remediate Cd-contaminated soil by Brassica juncea L. Acta Physiologiae Plantarum， 2024， 46（2）： 22.
3	Neeraj A， Hiranmai R Y， Iqbal K. Comprehensive assessment of pollution indices， sources apportionment and ecological risk mapping of heavy metals in agricultural soils of Raebareli District， Uttar Pradesh， India， employing a GIS approach. Land Degradation & Development， 2023， 34（1）： 173-195.
4	Jo H J， Kim G B， Chang J Y， et al. Chronic exposure to lead and cadmium in residents living near a zinc smelter. International Journal of Environmental Research and Public Health， 2021， 18（4）： 1731.
5	Zou M M， Zhou S L， Zhou Y J， et al. Cadmium pollution of soil-rice ecosystems in rice cultivation dominated regions in China： a review. Environmental Pollution， 2021， 280： 116965.
6	Mei S N， Lin K N， Williams D V， et al. Cadmium accumulation in cereal crops and tobacco： a review. Agronomy， 2022， 12（8）： 1952.
7	El Rasafi T， Oukarroum A， Haddioui A， et al. Cadmium stress in plants： a critical review of the effects， mechanisms， and tolerance strategies. Critical Reviews in Environmental Science and Technology， 2022， 52（5）： 675-726.
8	Yan H L， Guo H Y， Li T， et al. High-precision early warning system for rice cadmium accumulation risk assessment. Science of the Total Environment， 2022， 859： 160135.
9	Wang W， Man Z， Li X L， et al. Multi-phenotype response and cadmium detection of rice stem under toxic cadmium exposure. Science of the Total Environment， 2024， 917： 170585.
10	Liu Q H， Lu W S， Bai C H， et al. Cadmium， arsenic， and mineral nutrients in rice and potential risks for human health in South China. Environmental Science and Pollution Research， 2023， 30（31）： 76842-76852.
11	Yang Q， Zhao Z Q， Bai Z K，et al. Effects of mycorrhizae and water conditions on perennial ryegrass growth in rare earth tailings.RSC Advances， 2019， 9（19）： 10881-10888.
12	Cvitković D， Lisica P， Zorić Z， et al. Composition and antioxidant properties of pigments of Mediterranean herbs and spices as affected by different extraction methods. Foods， 2021， 10（10）： 2477.
13	Chen H B， Yang X， Gielen G L， et al. Effect of biochars on the bioavailability of cadmium and di-（2-ethylhexyl） phthalate to Brassica chinensis L. in contaminated soils. Science of the Total Environment， 2019， 678： 43-52.
14	Ai Y M， Wang Y， Song L P， et al. Effects of biochar on the physiology and heavy metal enrichment of Vetiveria zizanioides in contaminated soil in mining areas. Journal of Hazardous Materials， 2023， 448： 130965.
15	Ibrahim M， Nawaz S， Iqbal K， et al. Plant-derived smoke solution alleviates cellular oxidative stress caused by arsenic and mercury by modulating the cellular antioxidative defense system in wheat. Plants， 2022， 11（10）： 1379.
16	Bankaji I， Kouki R， Dridi N， et al. Comparison of digestion methods using atomic absorption spectrometry for the determination of metal levels in plants. Separations， 2023， 10（1）： 40.
17	Gao R L， Hu H Q， Fu Q L， et al. Remediation of Pb， Cd， and Cu contaminated soil by co-pyrolysis biochar derived from rape straw and orthophosphate： speciation transformation， risk evaluation and mechanism inquiry. Science of the Total Environment， 2020， 730： 139119.
18	Hussain B， Ashraf M N， Abbas A， et al. Cadmium stress in paddy fields： effects of soil conditions and remediation strategies. Science of the Total Environment， 2021， 754： 142188.
19	Xu H Z， Yan J P， Qin Y， et al. Effect of different forms of selenium on the physiological response and the cadmium uptake by rice under cadmium stress. International Journal of Environmental Research and Public Health， 2020， 17（19）： 6991.
20	Ma Y S， Jie H D， Tang Y Y， et al. The role of hemicellulose in cadmium tolerance in ramie ［Boehmeria nivea （L.） gaud.］. Plants， 2022， 11（15）： 1941.
21	El-Okkiah S A F， El-Tahan A M， Ibrahim O M， et al. Under cadmium stress， silicon has a defensive effect on the morphology， physiology， and anatomy of pea （Pisum sativum L.） plants. Frontiers in Plant Science， 2022， 13： 997475.
22	Wang T， Huang Y Y， Chen Y K， et al. Effects of cadmium stress on growth， physiological characteristics and cadmium enrichment and transport of lettuce. Journal of Northwest A & F University （Natural Science Edition）， 2024， 52（7）： 115-124.
	王涛，黄语燕，陈永快，等. Cd胁迫对生菜生长、生理特性及Cd富集转运特征的影响. 西北农林科技大学学报（自然科学版）， 2024， 52（7）： 115-124.
23	Wang Y P， Chang H， Li C， et al. Effects of exogenous Ca²⁺ on growth， photosynthetic characteristics and photosystem Ⅱ function of maize seedlings under cadmium stress. Acta Prataculturae Sinica， 2016， 25（5）： 40-48.
	王玉萍，常宏，李成，等. Ca²⁺对镉胁迫下玉米幼苗生长、光合特征和PSⅡ功能的影响. 草业学报， 2016， 25（5）： 40-48.
24	Zhang Y， Huang J F， Wang F M， et al. An extended prospect： advance in the leaf optical properties model separating total chlorophylls into chlorophyll a and b. Scientific Reports， 2017， 7（1）： 6429.
25	Kalaji H M， Jajoo A， Oukarroum A， et al. Chlorophyll a fluorescence as a tool to monitor physiological status of plants under abiotic stress conditions. Acta Physiologiae Plantarum， 2016， 38： 1-11.
26	Hu Y， Wang H C， Jia H P， et al. Effects of Cd treatment on morphology， chlorophyll content and antioxidant enzyme activity of Elymus nutans Griseb.， a native plant in Qinghai-Tibet Plateau. Plant Signaling & Behavior， 2023， 18（1）： 2187561.
27	Wang F， Xiao Y， Cheng X M， et al. Effects of cadmium stress on growth and cadmium enrichment of Chlorophytum comosum and Chlorophytum comosum var. variegatum. Chinese Joural of Applied Ecology， 2021， 32（5）： 1835-1844.
	王菲，肖雨，程小毛，等. 镉胁迫对吊兰及银边吊兰生长及镉富集特性的影响. 应用生态学报， 2021， 32（5）： 1835-1844.
28	Meena M， Divyanshu K， Kumar S， et al. Regulation of L-proline biosynthesis， signal transduction， transport， accumulation and its vital role in plants during variable environmental conditions. Heliyon， 2019， 5（12）： e02952.
29	Zhou J H， Cheng K， Song L P， et al. Exogenous indoleacetic acid induces cadmium accumulation and growth in Cinnamomum camphora. Scientia Horticulturae， 2024， 323： 112518.
30	Zhou J H， Cheng K， Gao R R， et al. Photosynthesis and other physiological characteristics of Cinnamomum camphora seedlings under cadmium stress. Forest Science， 2020， 56（6）： 193-201.
	周际海，程坤，郜茹茹，等. 土壤镉污染对香樟幼苗光合和生理特性的影响. 林业科学， 2020， 56（6）： 193-201.
31	Shanmugaraj B M， Malla A， Ramalingam S. Cadmium stress and toxicity in plants： an overview//Cadmium toxicity and tolerance in plants. Amsterdam， Netherlands： Academic Press， 2019： 1-17.
32	Mouradi M， Bouizgaren A， Farissi M， et al. Seed osmopriming improves plant growth， nodulation， chlorophyll fluorescence and nutrient uptake in alfalfa （Medicago sativa L.）-rhizobia symbiosis under drought stress. Scientia Horticulturae， 2016， 213： 232-242.
33	Kaur R， Das S， Bansal S， et al. Heavy metal stress in rice： uptake， transport， signaling， and tolerance mechanisms. Physiologia Plantarum， 2021， 173（1）： 430-448.
34	Guo J J， Qin S Y， Rengel Z， et al. Cadmium stress increases antioxidant enzyme activities and decreases endogenous hormone concentrations more in Cd-tolerant than Cd-sensitive wheat varieties. Ecotoxicology and Environmental Safety， 2019， 172（5）： 380-387.
35	Lin X B， Zhou L J， Wu D J， et al. Effect of cadmium stress on growth， physiological characteristics and cadmium enrichment of Pueraria thomsonii Benth.seedlings. Acta Agriculturae Universitatis Jiangxiensis（Natural Sciences Edition）， 2024， 46（4）：884-893.
	林小兵，周利军，吴多基，等. Cd胁迫对粉葛幼苗生长、生理特性及Cd富集的影响. 江西农业大学学报， 2024， 46（4）：884-893.
36	Guo Q， Meng L， Zhang Y N， et al. Antioxidative systems， metal ion homeostasis and cadmium distribution in Iris lactea exposed to cadmium stress. Ecotoxicology and Environmental Safety， 2017， 139（5）： 50-55.
37	Zaari Jabri N， Ait-El-Mokhtar M， Mekkaoui F， et al. Impacts of cadmium toxicity on seed germination and seedling growth of Triticum durum cultivars. Cereal Research Communications， 2023， 52（4）： 1399-1409.
38	Chavez E， He Z L， Stoffella P J， et al. Chemical speciation of cadmium： an approach to evaluate plant-available cadmium in Ecuadorian soils under cacao production. Chemosphere， 2016， 150： 57-62.
39	Lin H M， Fang C X， Li Y Z， et al. Effect of silicon on grain yield of rice under cadmium-stress. Acta Physiologiae Plantarum， 2016， 38（186）： 1-13.
40	Ziaf K， Talha H M， Ghani M A， et al. Differential accumulation pattern of cadmium in plant parts of pea varieties in response to varying cadmium levels. South African Journal of Botany， 2023， 161： 599-606.
41	He X， Lu Y G， Zhang J， et al. Effects of soil types on potato growth and cadmium accumulation and transport characteristics under cadmium stress. Earth and Environment， 2023， 51（1）： 87-101.
	何雪，陆引罡，张洁，等. 镉胁迫下不同土壤类型对马铃薯生长及镉富集转运特性的影响. 地球与环境， 2023， 51（1）： 87-101.
42	National Health Commission of the People’ s Republic of China. National standard for food safety pollutant pollutants in food. Beijing， China： National Health Commission of the People’ s Republic of China， 2022.
43	Zhou Y M， Long S S， Li B Y， et al. Enrichment of cadmium in rice （Oryza sativa L.） grown under different exogenous pollution sources. Environmental Science and Pollution Research， 2020， 27（35）： 44249-44256.
44	Bora M S， Gogoi N， Sarma K P. Tolerance mechanism of cadmium in Ceratopteris pteridoides： translocation and subcellular distribution. Ecotoxicology and Environmental Safety， 2020， 197（7）： 110599.
45	Kaushik S， Ranjan A， Sidhu A， et al. Cadmium toxicity： its’ uptake and retaliation by plant defence system and ja signaling. Biometals， 2024， 37（4）： 755-772.
46	Sun J Y， Guo R， Jiang Q， et al. Brassinosteroid decreases cadmium accumulation via regulating gibberellic acid accumulation and Cd fixation capacity of root cell wall in rice （Oryza sativa）. Journal of Hazardous Materials， 2024， 469： 133862.
47	Fu Y Q， Yang X J， Shen H. Root iron plaque alleviates cadmium toxicity to rice （Oryza sativa） seedlings. Ecotoxicology and Environmental Safety， 2018， 161（10）： 534-541.
48	Tang X Y， Zhu Y G， Cui Y S， et al. The effect of ageing on the bioaccessibility and fractionation of cadmium in some typical soils of China. Environment International， 2006， 32（5）： 682-689.
49	Uraguchi S， Mori S， Kuramata M， et al. Root-to-shoot Cd translocation via the xylem is the major process determining shoot and grain cadmium accumulation in rice. Journal of Experimental Botany， 2009， 60（9）： 2677-2688.
50	Ni Z Y， Zhang M K， Wang J W， et al. Cadmium uptake and accumulation in rice at different growth stages. Journal of Agriculture， 2020， 10（3）： 49.
